Mid-century Modern House Floor Plans: Clerestory Cascade With Cedar Contrast

Last updated on February 3, 2026 · ⓘ How we make our floor plans

Clerestory Cascade With Cedar Contrast Floor Plan

This design presents a crisp, single-story modern home with a strong mid-century mood: clean lines, efficient planning, and daylight-forward glazing.

The facade composition is horizontal and deliberate. Low-slope shed roof planes stack in a tidy cascade, with deep overhangs and a band of clerestory windows for extra sky. Exterior cladding mixes horizontal wood siding with dark shingle-style panels (fiber-cement look), trimmed in bright, sharp white. Roofing reads as a standing-seam or smooth membrane expression suited to low pitch. The entry is punctuated by a bold, red door—because subtlety is overrated at the front step.

These drawings are floor plan drafts. They are available for download as printable PDF for easy plotting, markups, and the occasional “what if we move that wall?” moment.

Total area (all floors): 2,050 sq ft (50 ft × 41 ft)
Bedrooms: 2
Bathrooms: 1
Floors: 1

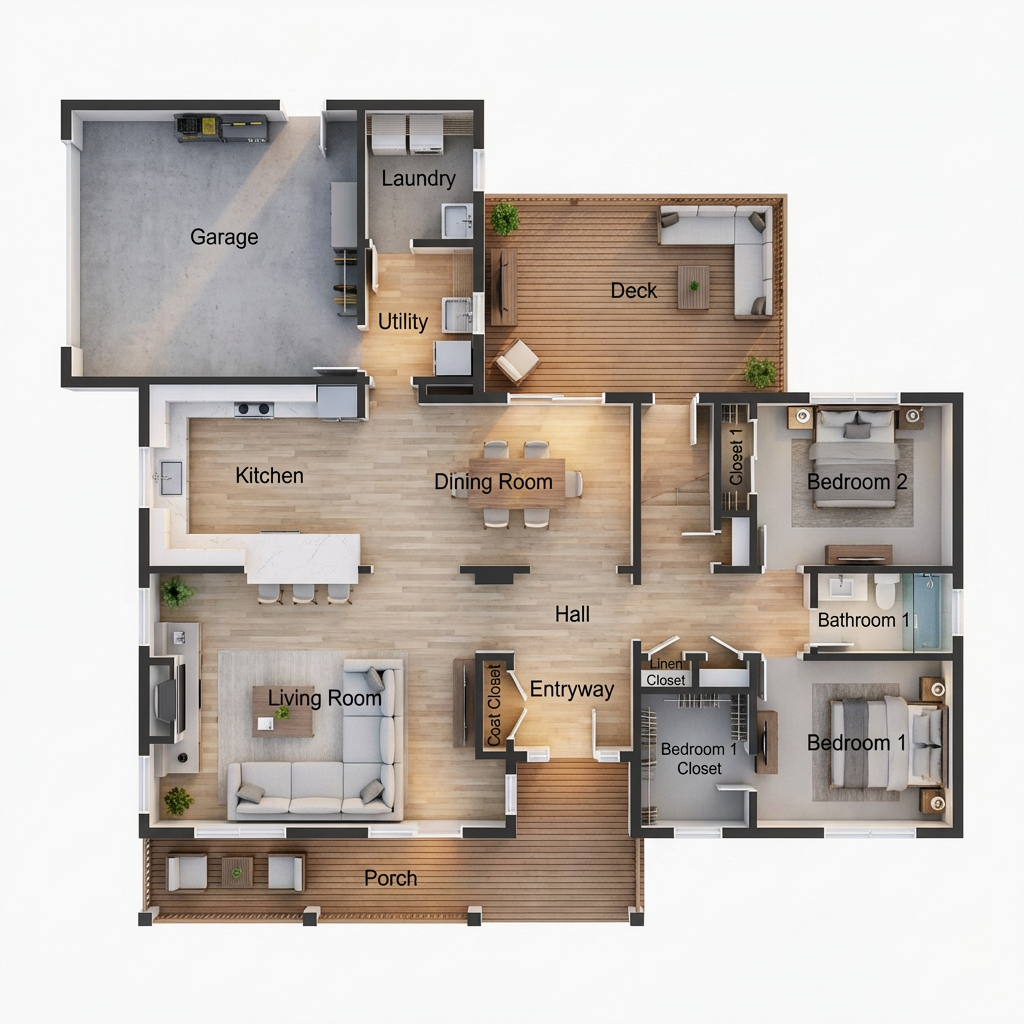

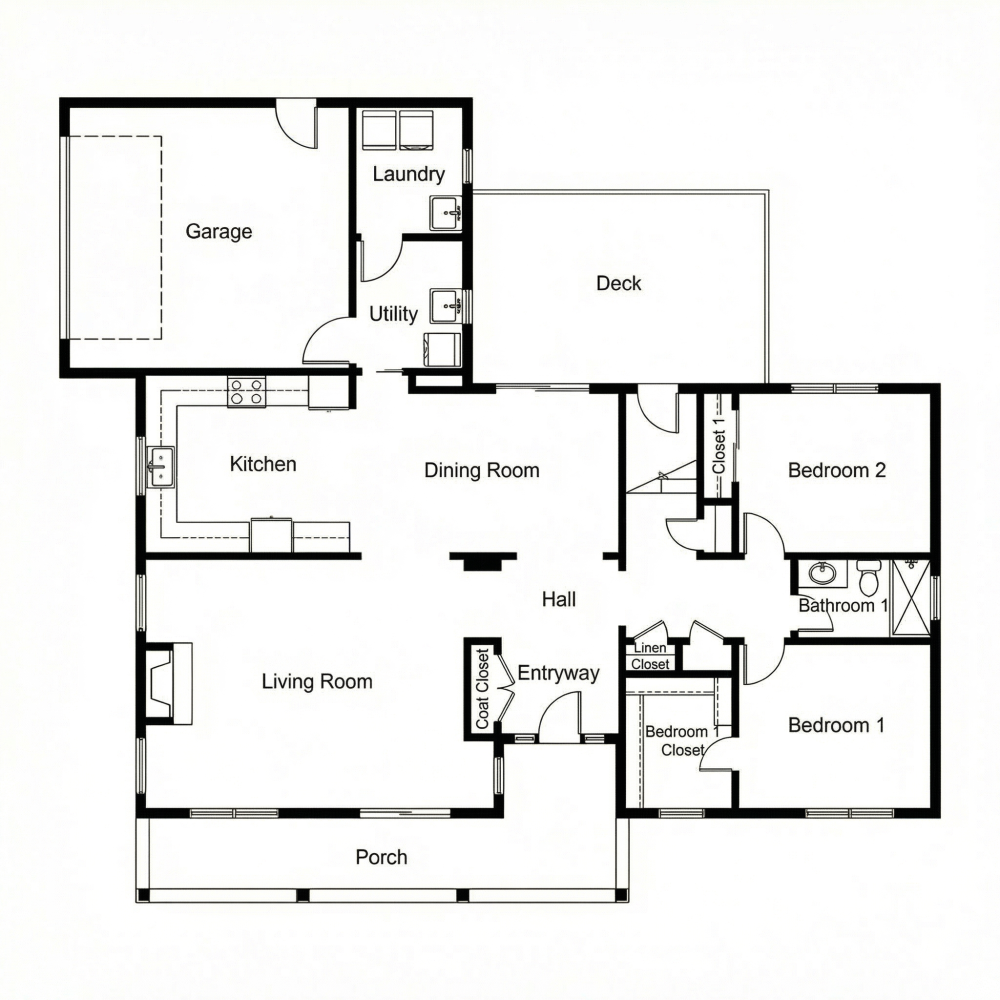

Main Floor (50 ft × 41 ft)

Download Floor PDF

A straightforward, practical rectangle: public rooms to the left, private rooms to the right, and service spaces tucked up top for maximum efficiency. The entry lands centrally, then the plan fans out with minimal wasted corridor. Outdoor living is treated seriously—porch out front, deck out back. Two different “sit outside” options, no committee required.

Level area: 2,050 sq ft (gross draft footprint).

Porch: Full-width front porch serving the main entry.
Entryway: Central arrival zone with direct access to hall and living spaces.
Coat Closet: Near entry for immediate drop-zone discipline.
Living Room: Large primary gathering space at the front-left.
Kitchen: Left-side kitchen adjoining dining; efficient work run and clear circulation.
Dining Room: Central dining space with easy flow to the rear deck.
Hall: Connects entry to bedrooms and bath without dramatic detours.
Linen Closet: Placed near the bedroom/bath zone for civilized towel logistics.
Bedroom 1: Right-front bedroom with dedicated closet.
Bedroom 1 Closet: Separate closet accessed from Bedroom 1.
Bedroom 2: Right-rear bedroom with nearby closet.
Closet 1: Additional closet adjacent to the hall (good for overflow, games, or secret snacks).
Bathroom 1: Full bath serving both bedrooms.
Garage: Single-bay garage at the upper-left with interior access nearby.
Utility: Service room between garage and rear yard access.
Laundry: Dedicated laundry room near utility and deck access.
Deck: Rear deck accessed from the central zone for easy indoor-outdoor hosting.
