Tiny House Floor Plans: Steel Cocoon

Last updated on March 24, 2026 · ⓘ How we make our floor plans

This design is a compact contemporary tiny house with cabin character. It uses a one-level layout with a simple footprint, clear circulation, and just enough outdoor spill space to keep the plan lively.

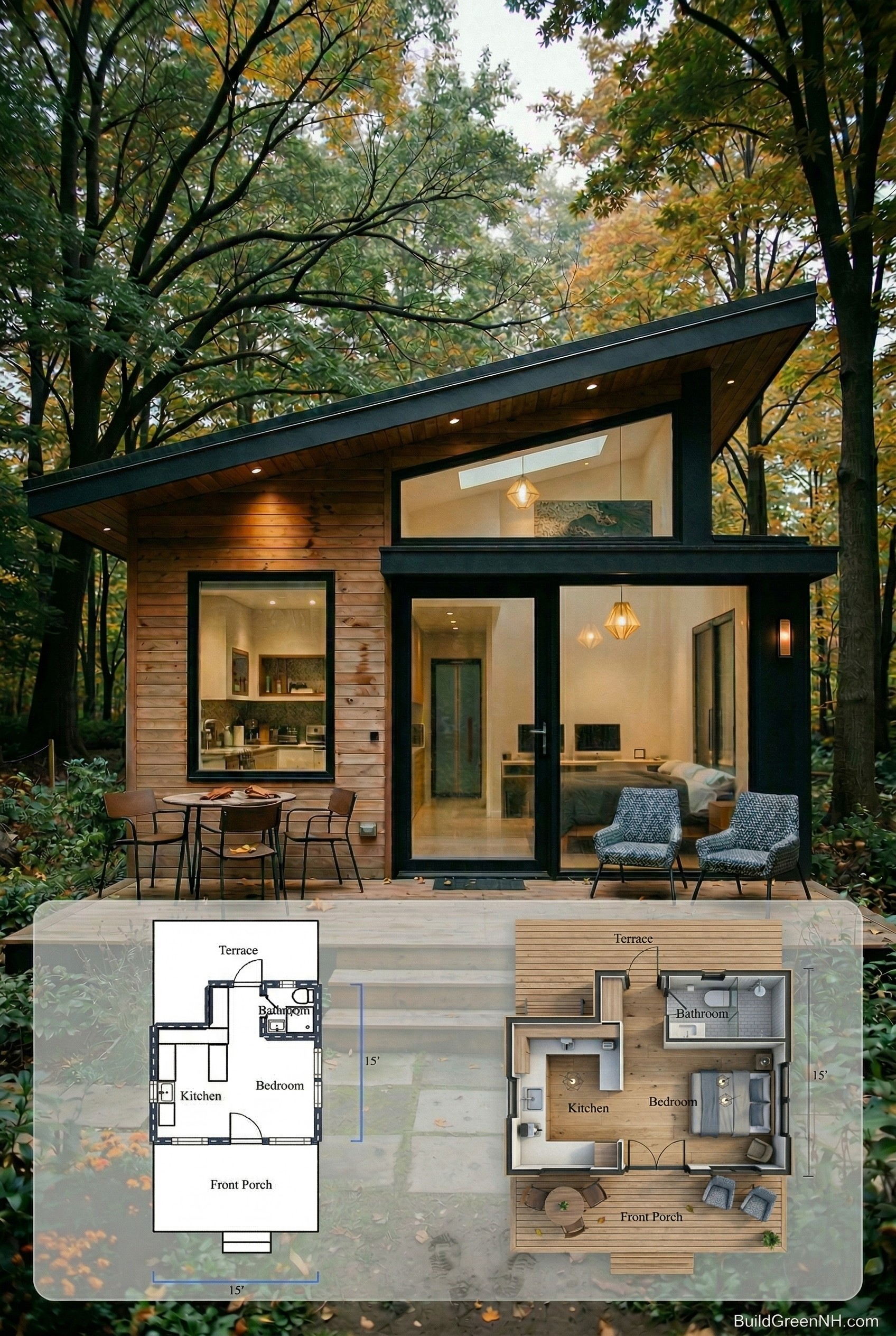

The facade is crisp and modern. A single-slope roof gives the house a sharp profile, while large glazed openings and black-framed doors add a sleek edge. Horizontal wood siding brings warmth and texture. Dark metal roofing and trim keep the composition neat, lean, and a little stylishly stern.

These floor plan drafts are available for download as a printable PDF. They are handy for review, markup, and that very serious moment when someone asks, “But where does the chair go?”

Key specs:

Total area: Approx. 197 sq. ft.
Bedrooms: 1
Bathrooms: 1
Floors: 1

Main Floor

Download Floor PDF

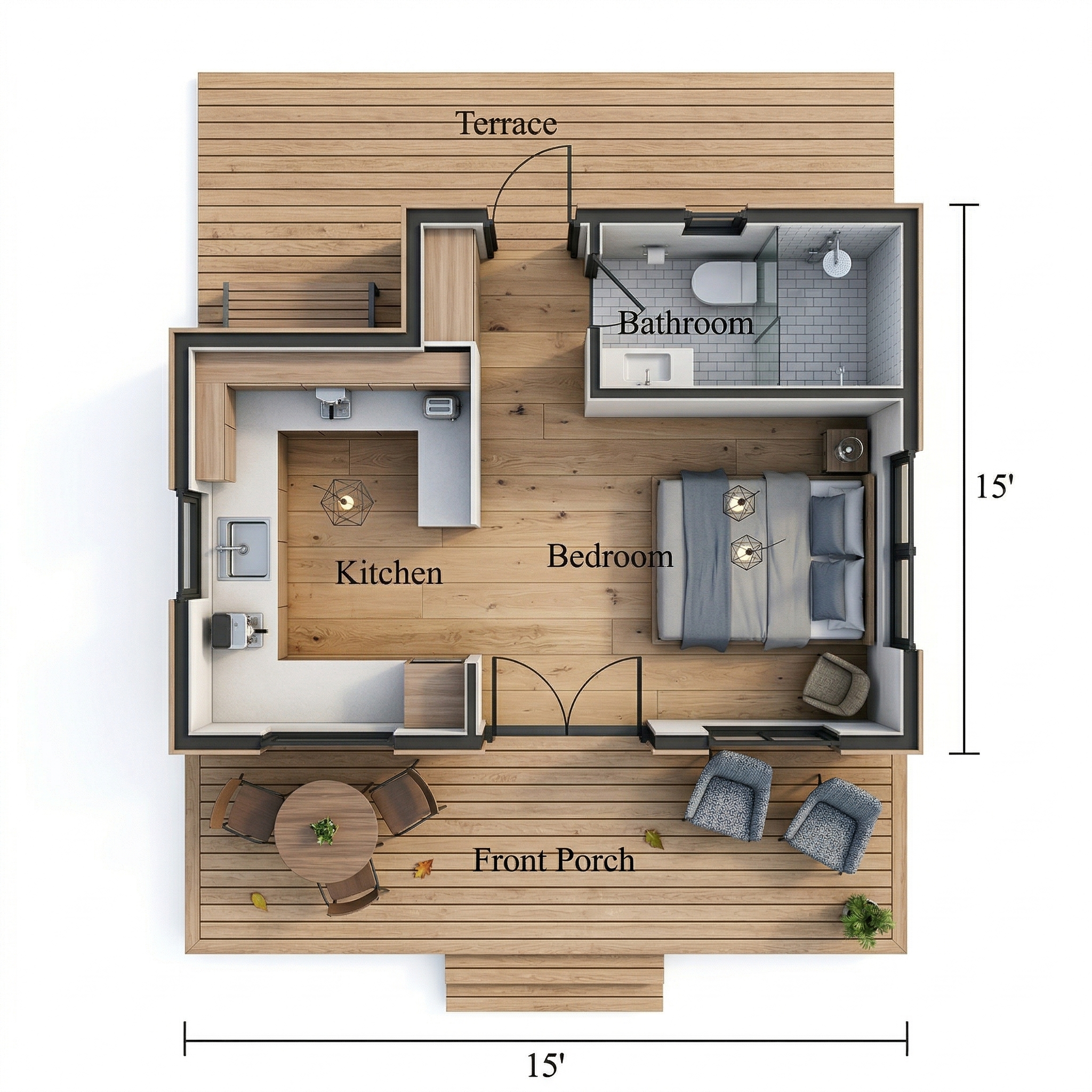

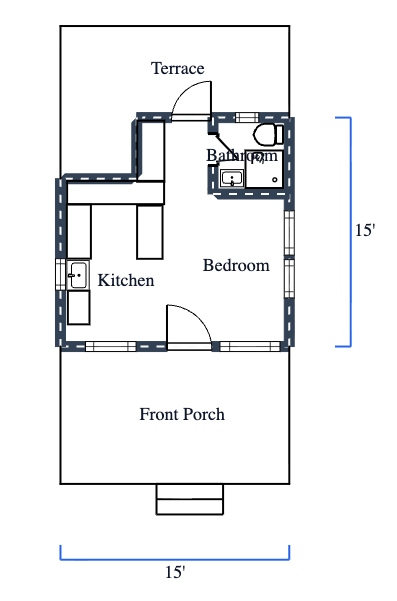

The main floor is drawn at approximately 15′ by 15′, giving it a drafted footprint of about 197 square feet of livable space. The layout is compact and direct. A full-width front porch leads into the main bedroom space, the kitchen sits on the left, the bathroom is tucked into the rear right corner, and a rear terrace adds a pleasant extra. Tiny, yes. Confused, no.

Individual room dimensions are not fully labeled on the draft, so the scale is best understood from the overall floor size.

Front Porch: Full-width entry porch at the front of the plan.
Bedroom: The main interior room, positioned in the center-right portion of the layout.
Kitchen: A compact open kitchen on the left side with a simple, efficient cabinet arrangement.
Bathroom: A small bath in the rear right corner, placed for privacy and efficiency.
Terrace: A rear terrace at the top of the plan, giving the small home a useful outdoor extension.

We have more facade options of this design:

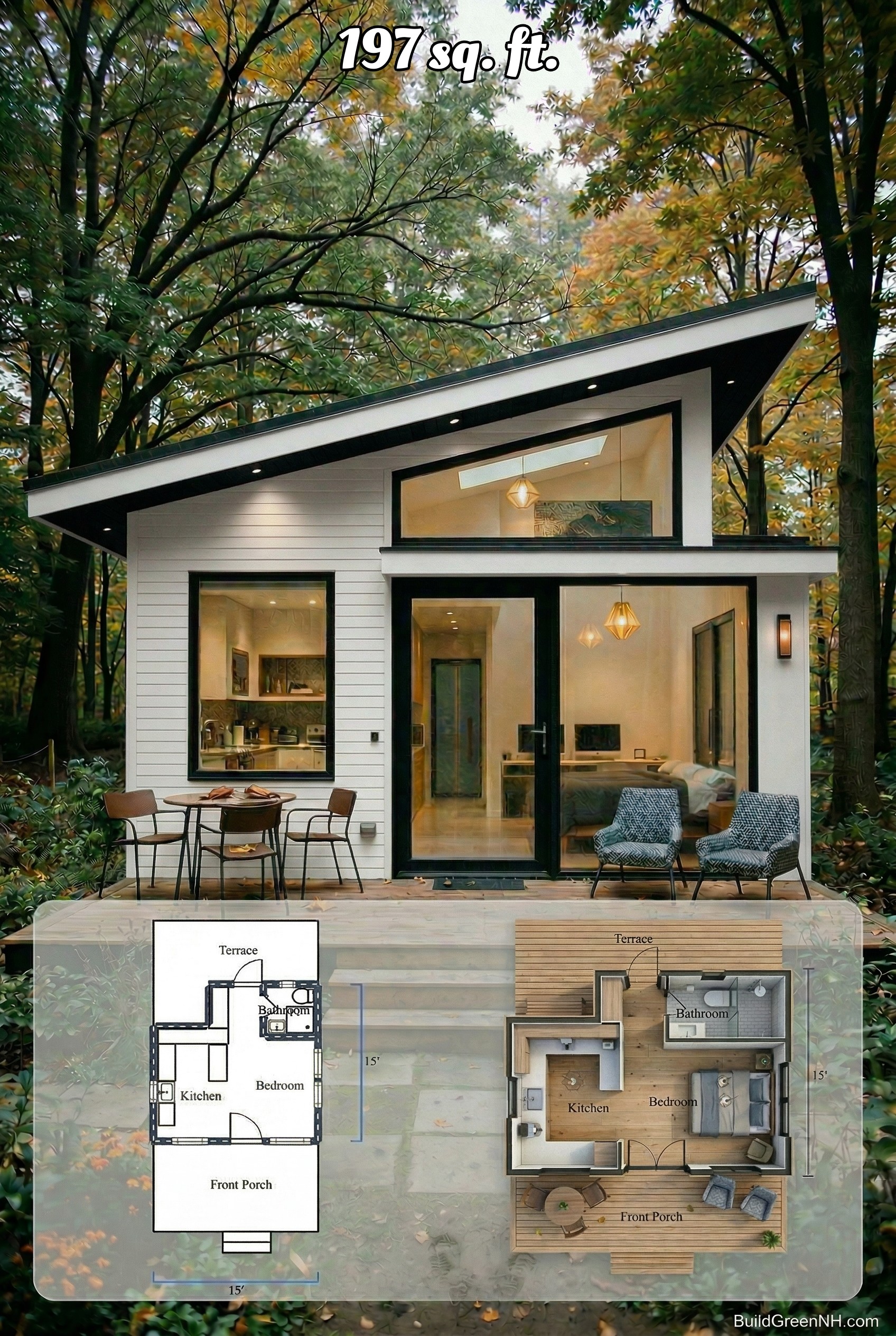

All-White Siding

The facade now wears all-white siding, replacing any mixed tones or exposed boards. The uniform skin sharpens the shed roof’s silhouette and makes the black frames snap like ink on paper.

Horizontal laps read cleaner, stretching the tiny footprint visually. Even the clerestory pops harder, a bright stripe tucked under the deep eave.

With the siding unified, the porch and steps feel lighter, almost hovering. The big panes take center stage while the wall politely steps back, so the warm pendants glow like little suns.

Trim, soffit lights, and that lean overhang punch crisply against the white shell, dialing up the modern vibe. Small house, big exhale.

All-Black Siding

Switched to all-black siding, the facade turns crisp and monolithic. The single-slope roof reads sharper, with dark fascia and soffits pulling the eave into one uninterrupted stroke.

Big panes—the picture window, glazed door, and clerestory—flare brighter against the blackout, like lanterns minus the campfire. Eave downlights now sparkle, tiny runway beacons for touchdown.

Horizontal boards go stealth-mode, tightening the rhythm so the mass feels longer and lower. Blacked trim, posts, and beams merge, deepening the entry reveal and exaggerating the overhang’s shadow.

Hardware and warm pendant lights become the only jewelry, while the deck and interior woods pop by contrast. It’s the little black dress of micro-houses—tailored, confident, a touch smug.

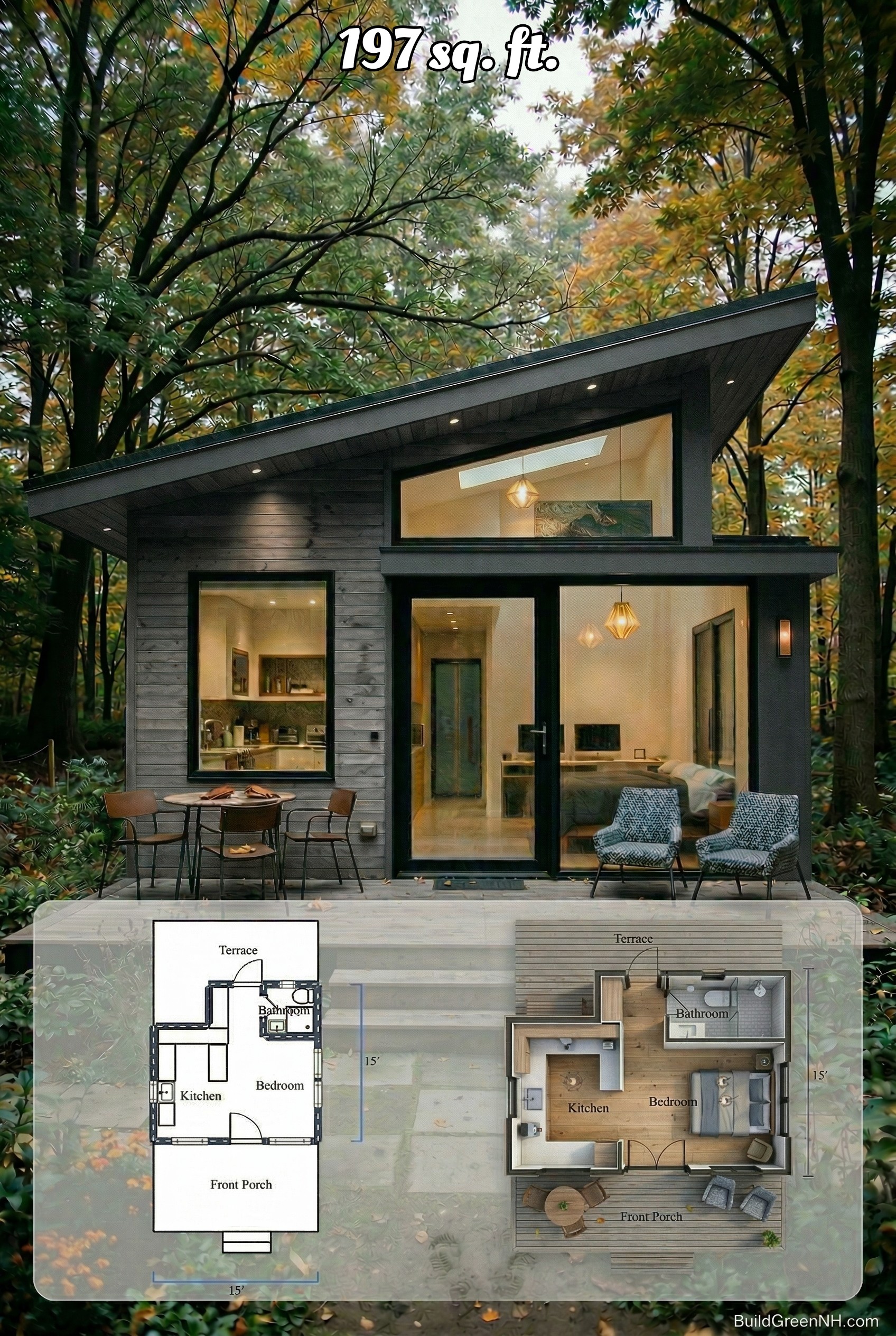

Grey Color Siding

The siding is now fully grey, pulling the whole facade into a clean, monochrome wrap. The shed roof line reads sharper, and the charcoal door and window frames jump forward against the uniform boards.

Even the small entry canopy feels crisper, like the house swapped a flannel shirt for a tailored jacket.

With the grey skin, the glazing becomes the star: the tall front door, wide picture window, and clerestory strip punch brighter apertures.

Soffit downlights tuck neatly under the overhang, emphasizing the roof’s thin edge. The porch mass looks more grounded and modern—moody in the best “tiny design, big attitude” kind of way.

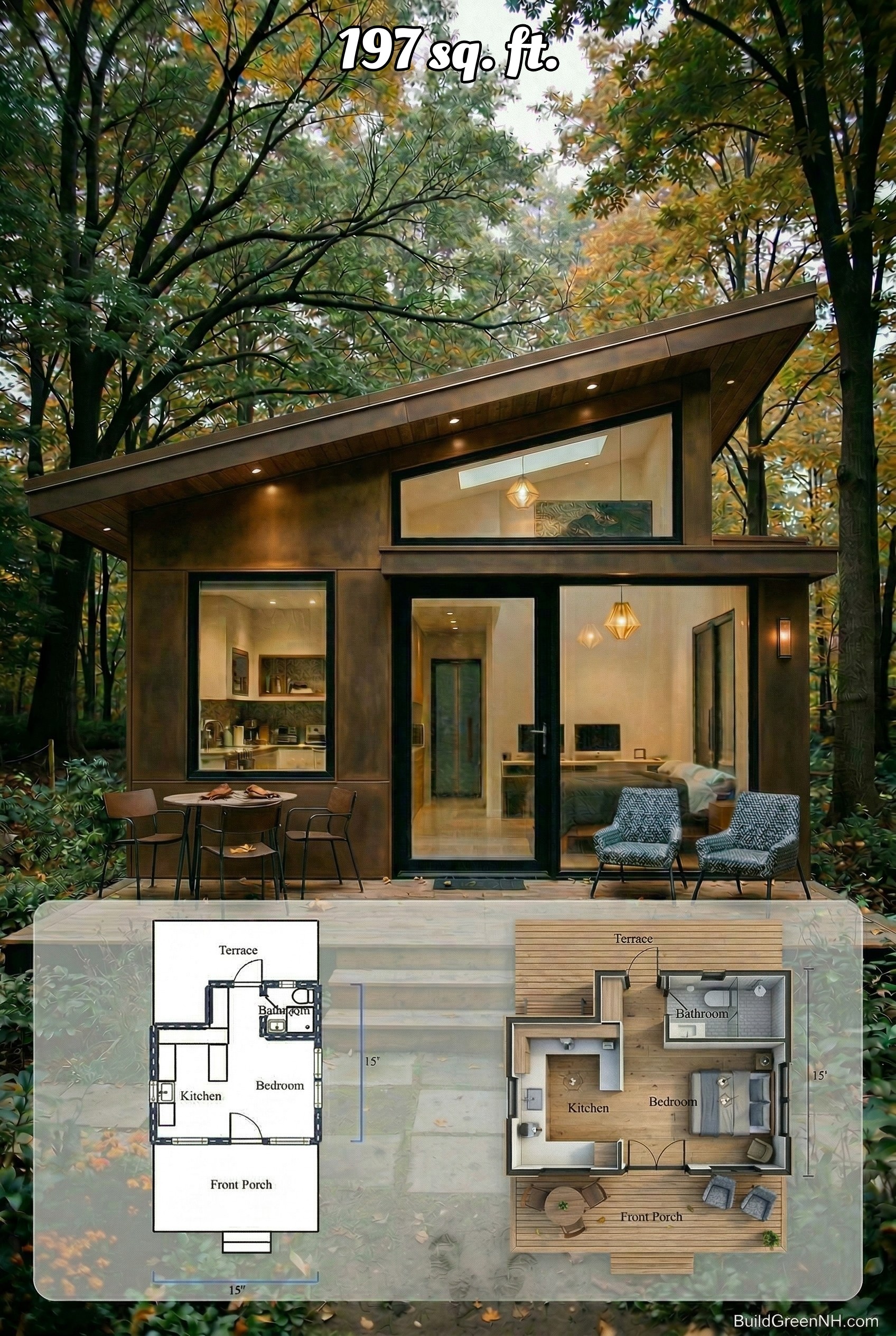

Bronze Color Siding

All siding is now bronze, wrapping the front like a modern armor plate. The shed roof’s deep eave reads crisper against that metallic field, and the soffit lights sparkle off it like tiny stage lamps. Black-framed glazing—the tall glass door, big picture window, and the clerestory strip—pops like inlaid obsidian.

Panel seams form a neat grid, tightening the composition. Small house, big swagger.

The entry surround and the horizontal header become one bronze ribbon, visually widening the facade. Side walls and porch returns feel monolithic, while the wood deck stands out brighter—bronze house, timber shoes.

The clerestory zone looks sleeker, and the lone sconce turns into a jewel pin on a bronze jacket. Metal-wrapped corners sharpen every edge, trading rustic for precision without losing the cozy welcome.

Forest Green Color Siding

Switched to full forest‑green siding, the facade snaps into stealth mode. The single shed roof and deep overhang read bolder, while the black picture window, clerestory, and glazed door pop like ink on moss.

The color shift also streamlines the frontage into one monolithic plane, letting the warm wood soffits and deck do the contrasting. Recessed eave lights glow like tiny fireflies, and the boxed entry frame looks crisper and slimmer against the dark boards.
