This is a compact two-story residence with a clean, modern Mediterranean attitude: bold arches, crisp geometry, and a layout that keeps daily life efficient and pleasantly drama-free.

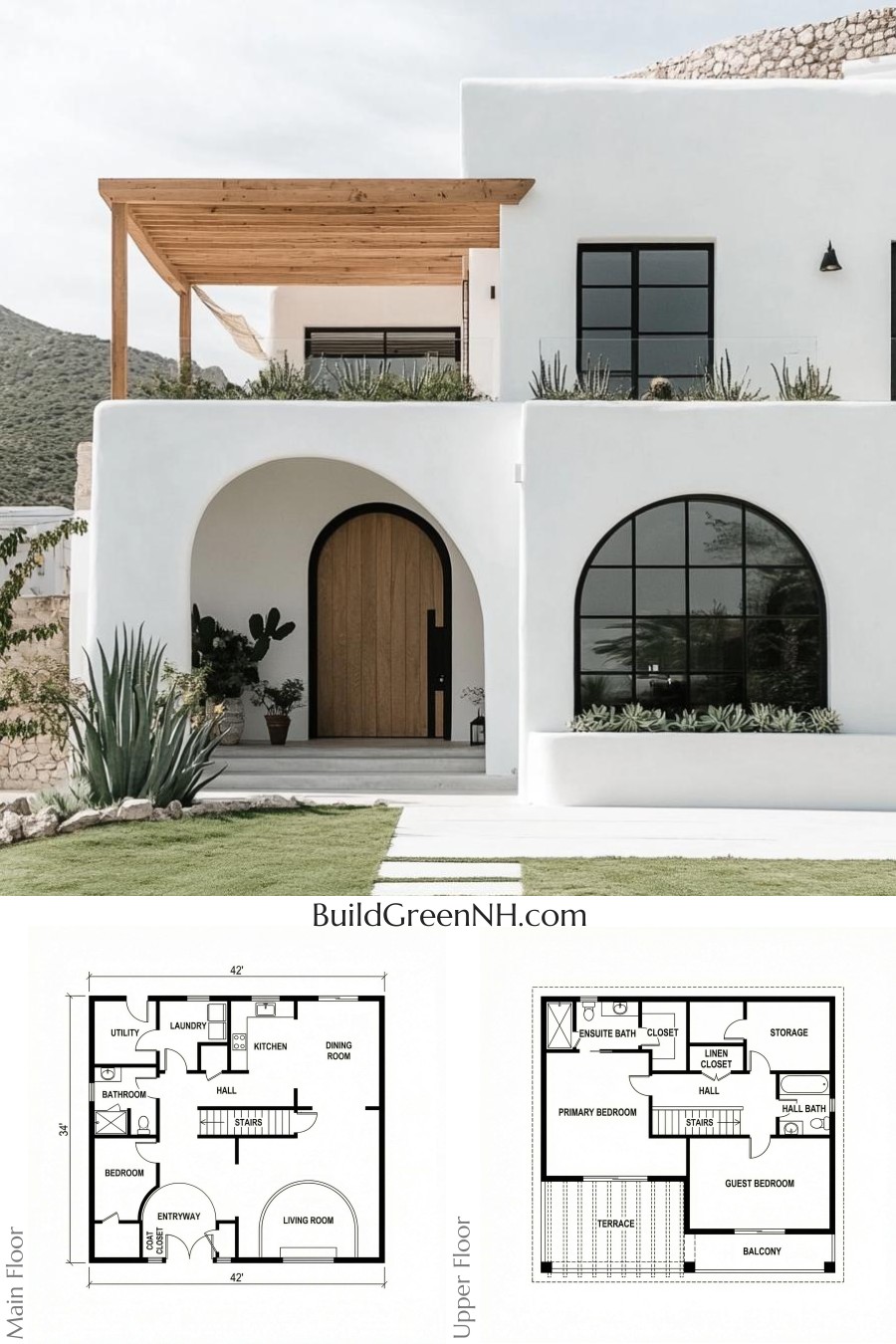

The facade is composed of smooth white stucco with sculpted arched openings and deep-set reveals. Black-framed glazing provides sharp contrast and a quiet, gallery-like rhythm. A timber pergola shades the upper outdoor room, adding warmth without stealing the spotlight. Roofing reads as low-slope/flat with parapet edges; simple massing, no unnecessary acrobatics.
These floor plans are drafts and are available for download as printable PDF files. Use them for planning, pricing, and daydreaming responsibly—final dimensions and detailing should be confirmed during documentation.
- Total area (all floors): 2,604 sq ft
- Bedrooms: 3
- Bathrooms: 3
- Floors: 2

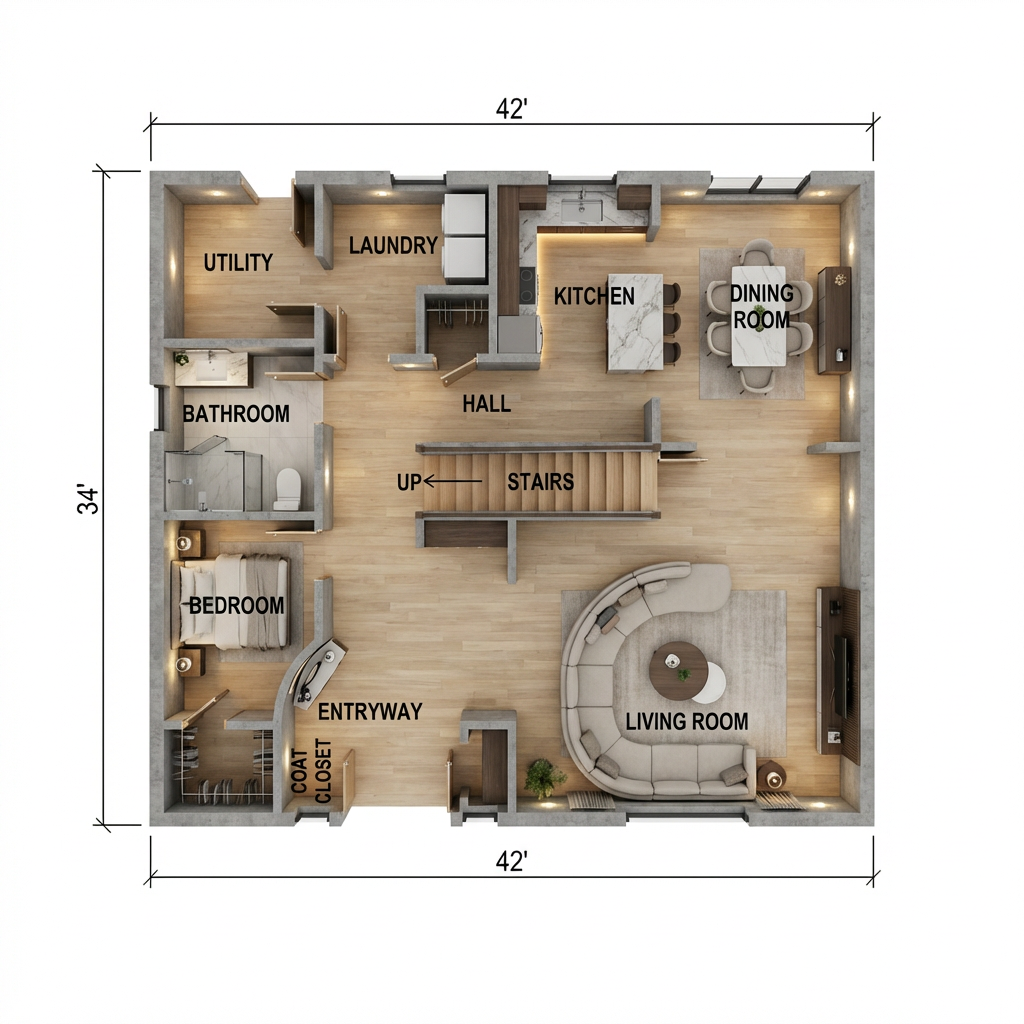

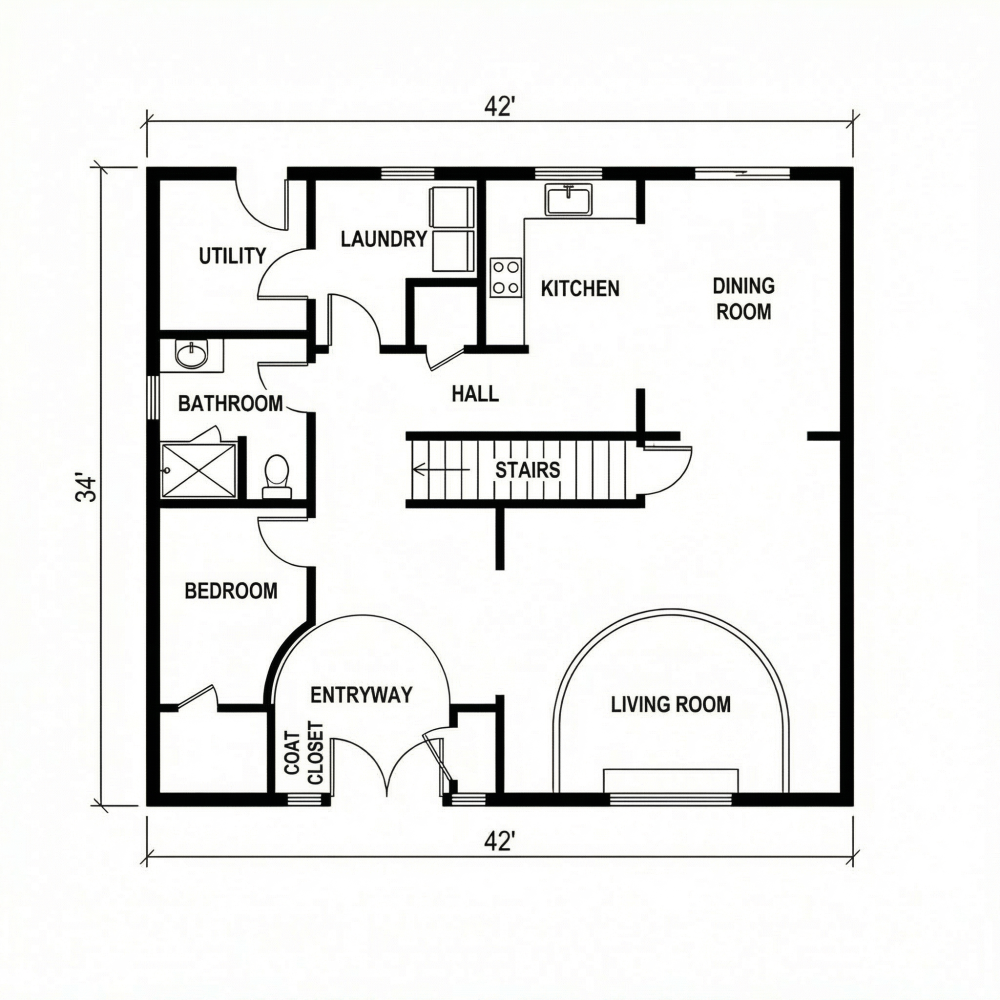

Main Floor
Overall scale: 42 ft × 34 ft (gross area: 1,428 sq ft).
The plan centers on a straight stair and hall spine, with public rooms to the right and service/sleeping to the left. Entry arrives through a curved vestibule, then the living space opens wide—no maze, no melodrama.
- Entryway (curved) with coat closet
- Living Room
- Dining Room
- Kitchen
- Hall
- Stairs (central)
- Bedroom
- Bathroom
- Laundry
- Utility

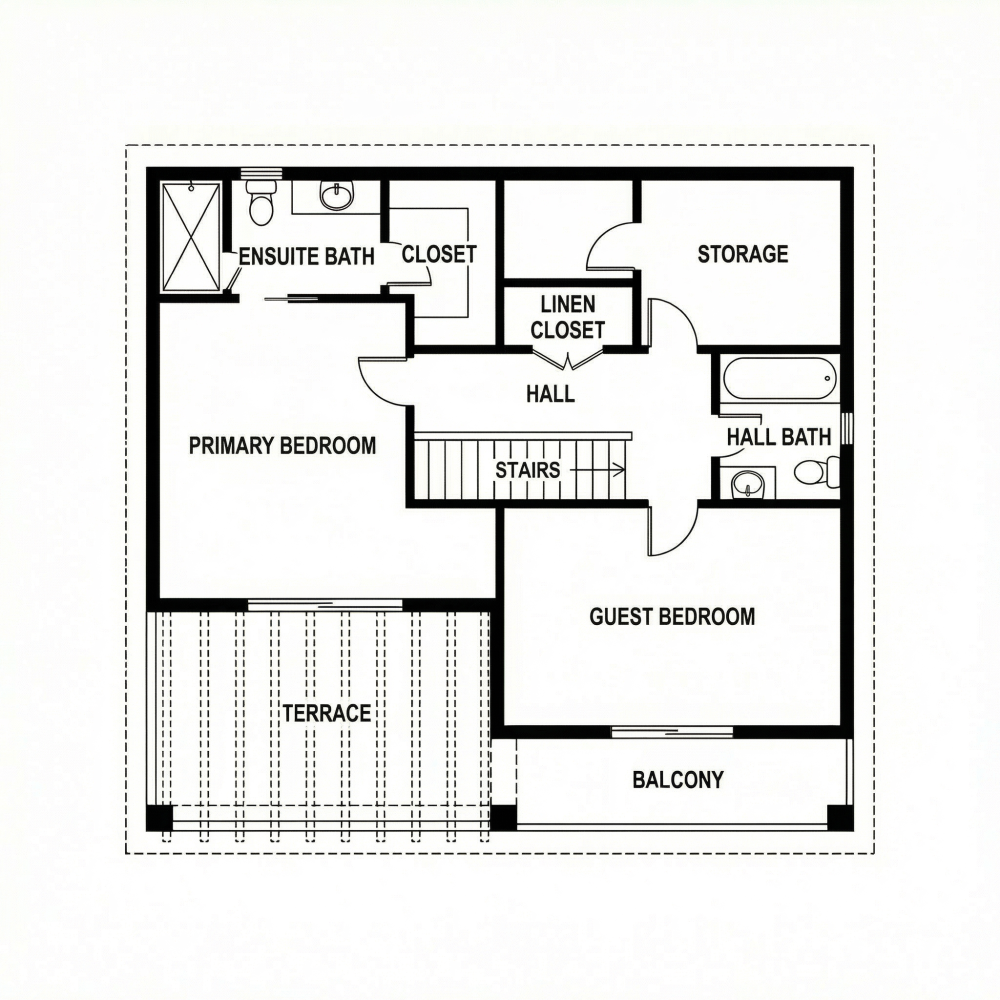

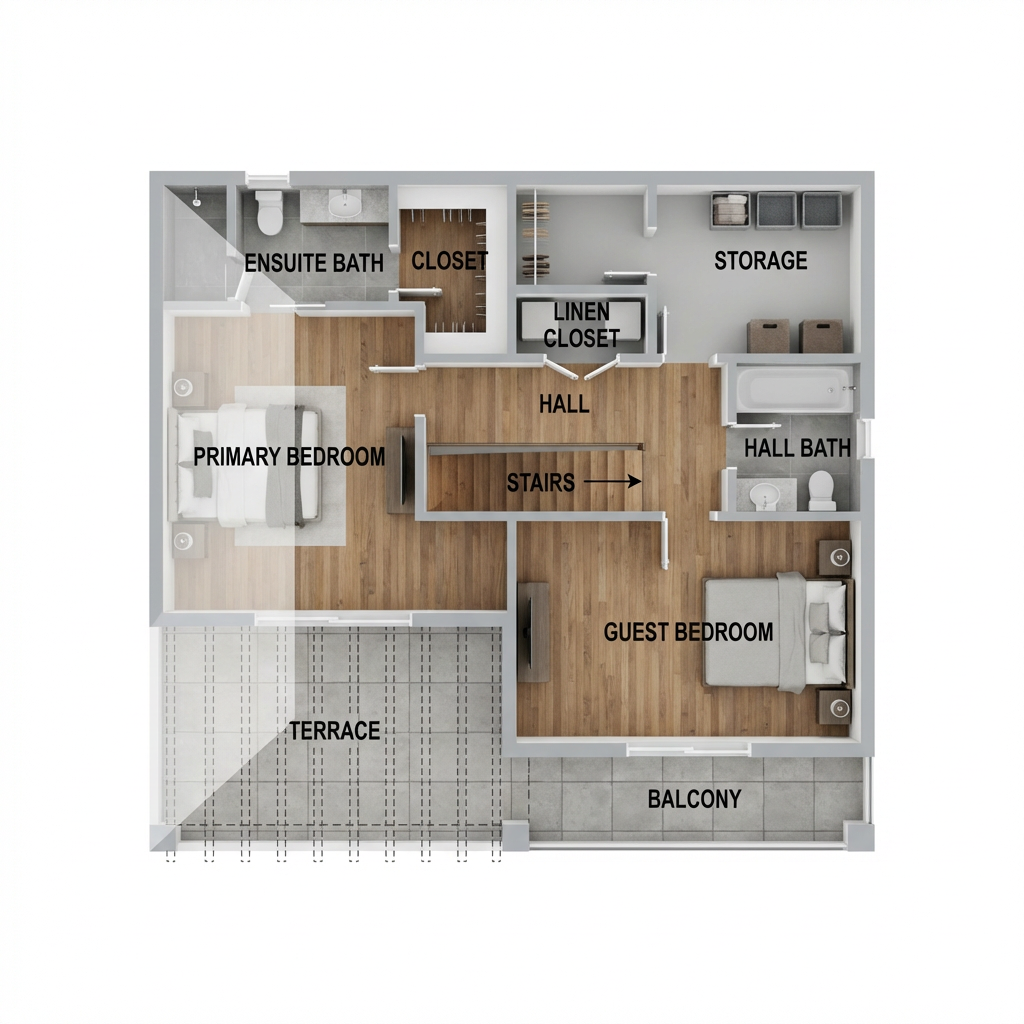

Upper Floor
Overall scale: 42 ft × 28 ft (gross area: 1,176 sq ft).
The stair lands into a compact hall that splits the sleeping wing cleanly. The primary suite holds the quiet side; the guest room gets its own hall bath. Outdoor space is not shy here—terrace and balcony deliver fresh air with minimal paperwork.
- Primary Bedroom
- Ensuite Bath
- Primary Closet
- Guest Bedroom
- Hall Bath
- Hall
- Linen Closet
- Storage
- Terrace
- Balcony
