30x40 ft 2,401 sqft 8-Bed 3-Bath Barndominium Floor Plans: Suburban Stormlight Barnhouse

Last updated on October 13, 2026 · ⓘ How we make our floor plans

This two-story home combines modern farmhouse detailing with a practical rectangular plan. Shared living spaces occupy the main floor, while four bedrooms provide privacy upstairs.

The floor plans were created from the visual concept image of the house, so they may not be 100% accurate. Every effort was made to make them as accurate as possible.

The facade features white vertical, board-and-batten-style siding, black-framed windows, and an exposed concrete base. A simple gabled roof gives the house its crisp silhouette. Dark roof trim and a standing-seam metal entrance canopy provide contrast. Square porch posts frame the deep-blue front door and its narrow sidelight.

Total area: 2,401 sq ft
Bedrooms: 4
Bathrooms: 3
Floors: 2

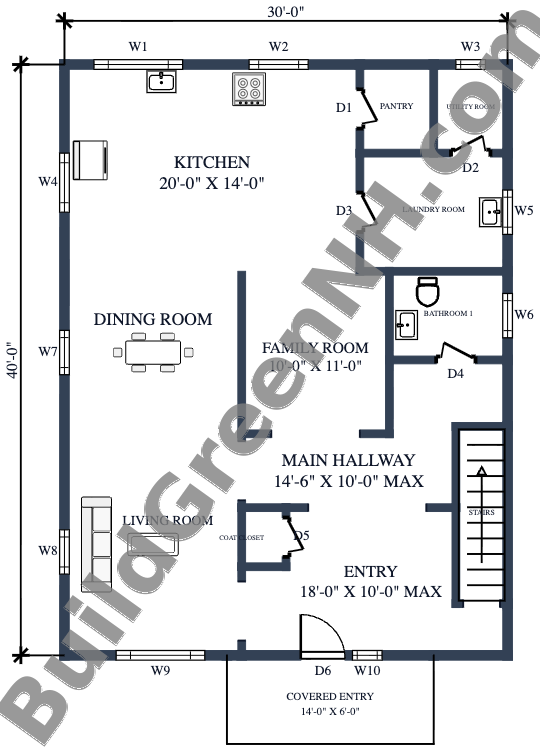

Main Floor

The main floor measures 30 ft by 40 ft, with a stated area of 1,200 sq ft. The front entry connects to a central hallway, with the staircase along the right side. Living and dining spaces occupy the left side, leading toward the large rear kitchen. A partial dividing wall gives the central family room some separation without fully enclosing it.

The pantry, utility room, and laundry room form a service cluster at the rear right. The coat closet sits beside the entry, keeping jackets from appointing themselves permanent residents of the living room. A hallway-accessed bathroom serves the shared spaces.

Covered Entryway — 84 sq ft: Sheltered approach to the front door.
Entryway — 146 sq ft: Arrival space connecting to the hallway and stairs.
Coat Closet — 12 sq ft: Convenient storage beside the entry.
Main Hallway — 111 sq ft: Central circulation linking the main-floor spaces.
Living Room — 181 sq ft: Front-left sitting area adjoining the dining zone.
Dining Room — 132 sq ft: Positioned between the living room and kitchen.
Kitchen — 280 sq ft: Large rear workspace with direct pantry and laundry access.
Pantry — 30 sq ft: Dedicated food and kitchen-supply storage.
Utility Room — 31 sq ft: Separate service space beside the pantry.
Laundry Room — 81 sq ft: Enclosed household workroom beside the kitchen.
Family Room — 110 sq ft: A second gathering area near the kitchen and dining room.
Bathroom 1 — 49 sq ft: Conveniently positioned off the main circulation route.
Stairs — 43 sq ft: Right-side connection to the upper floor.

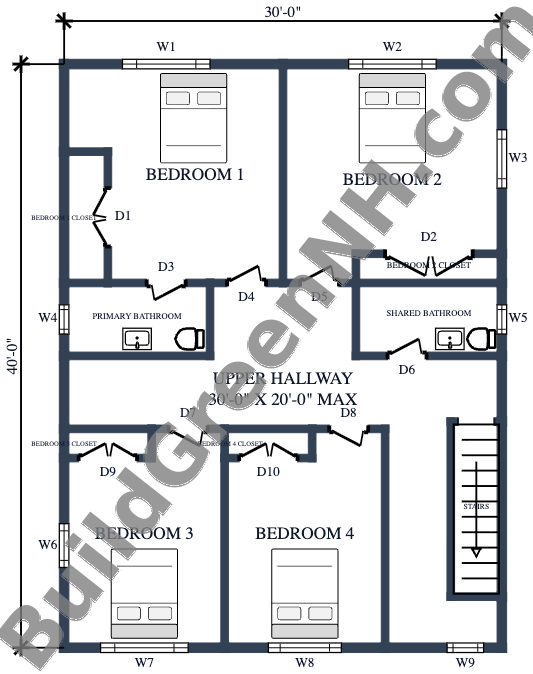

Upper Floor

The upper floor measures 30 ft by 40 ft, with a stated area of 1,201 sq ft. Four bedrooms occupy the corners around a broad central hallway. The two larger bedrooms sit at the rear, while the smaller pair face the front. Bathrooms sit between the rear bedrooms and the hall.

Every bedroom has its own closet, keeping clothing storage within the private rooms. The generous hallway provides clear access from the right-side staircase, although circulation occupies a substantial portion of this level.

Bedroom 1 — 199 sq ft: Rear-left bedroom with access to the primary bathroom.
Bedroom 1 Closet — 27 sq ft: The largest bedroom closet in the plan.
Bedroom 2 — 205 sq ft: Rear-right bedroom and the largest sleeping room.
Bedroom 2 Closet — 21 sq ft: Dedicated storage along the bedroom’s inner edge.
Primary Bathroom — 50 sq ft: Positioned directly below Bedroom 1 in the plan.
Shared Bathroom — 50 sq ft: Opens from the hallway beneath Bedroom 2.
Upper Hallway — 279 sq ft: Central distribution space serving the bedrooms and shared bathroom.
Bedroom 3 — 154 sq ft: Front-left bedroom.
Bedroom 3 Closet — 12 sq ft: Compact storage near the bedroom entrance.
Bedroom 4 — 153 sq ft: Front bedroom beside the stair zone.
Bedroom 4 Closet — 12 sq ft: Dedicated storage near the hallway.
Stairs — 43 sq ft: Connection to the main-floor entry and circulation spaces.

Pin this for later:

Suburban Stormlight Barnhouse Floor Plan
