This is a nice two-level modern barnhouse plan with a generous garage wing, a bright public core, and an upper sleeping zone topped off with a loft that refuses to be boring.

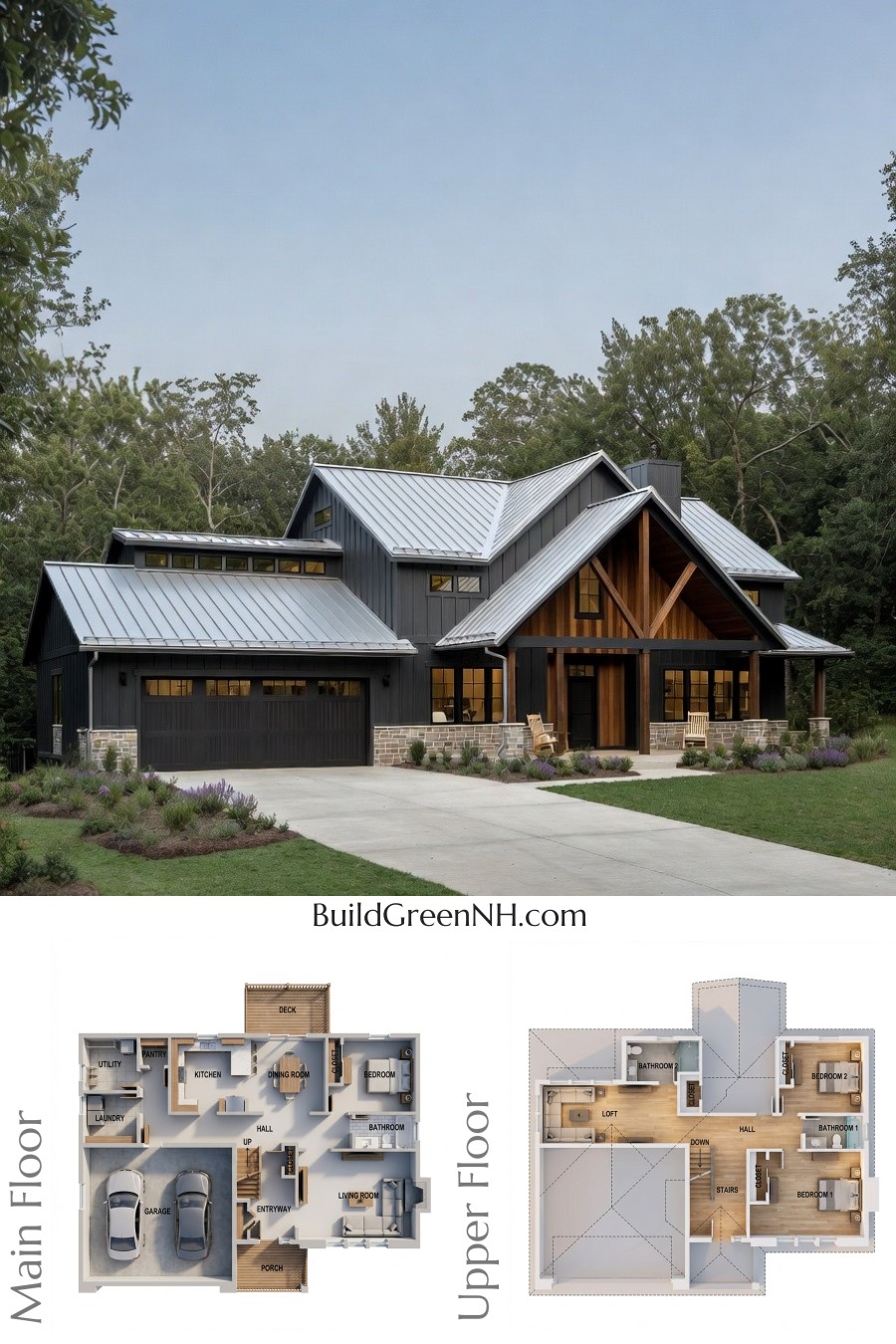

The facade reads crisp and confident. Steep gables and a standing-seam metal roof deliver that clean agrarian silhouette. Dark board-and-batten siding is balanced with warm wood accents at the entry gable, plus a stone/brick base wainscot for weight. Big, simple window groupings and a deep covered porch finish the composition with a polite hint of drama.
These drawings are floor plan drafts. They are available for download as printable PDF, ready for redlines, highlighters, and that one note that says “make pantry bigger” (it always happens).
- Total area (all floors, by plan extents): 3,100 sq ft
- Bedrooms: 3
- Bathrooms: 3
- Floors: 2

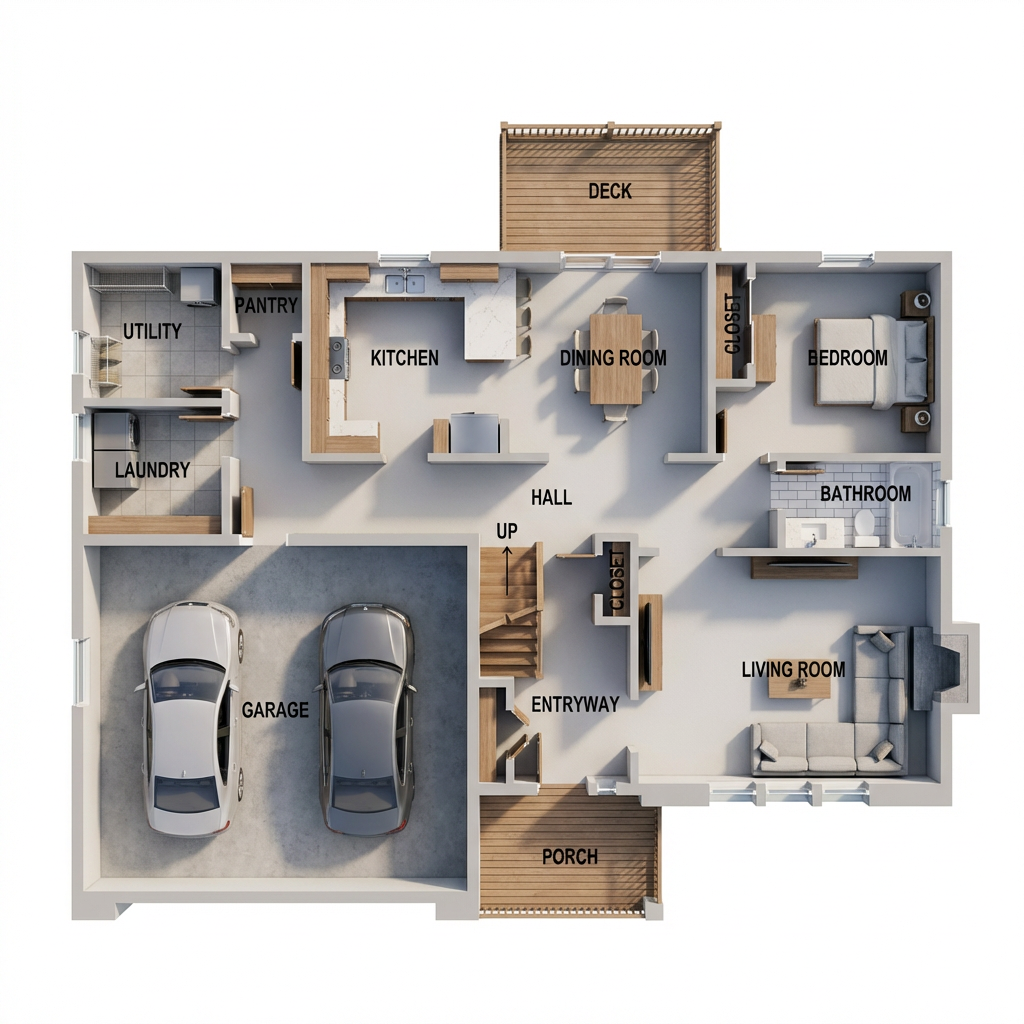

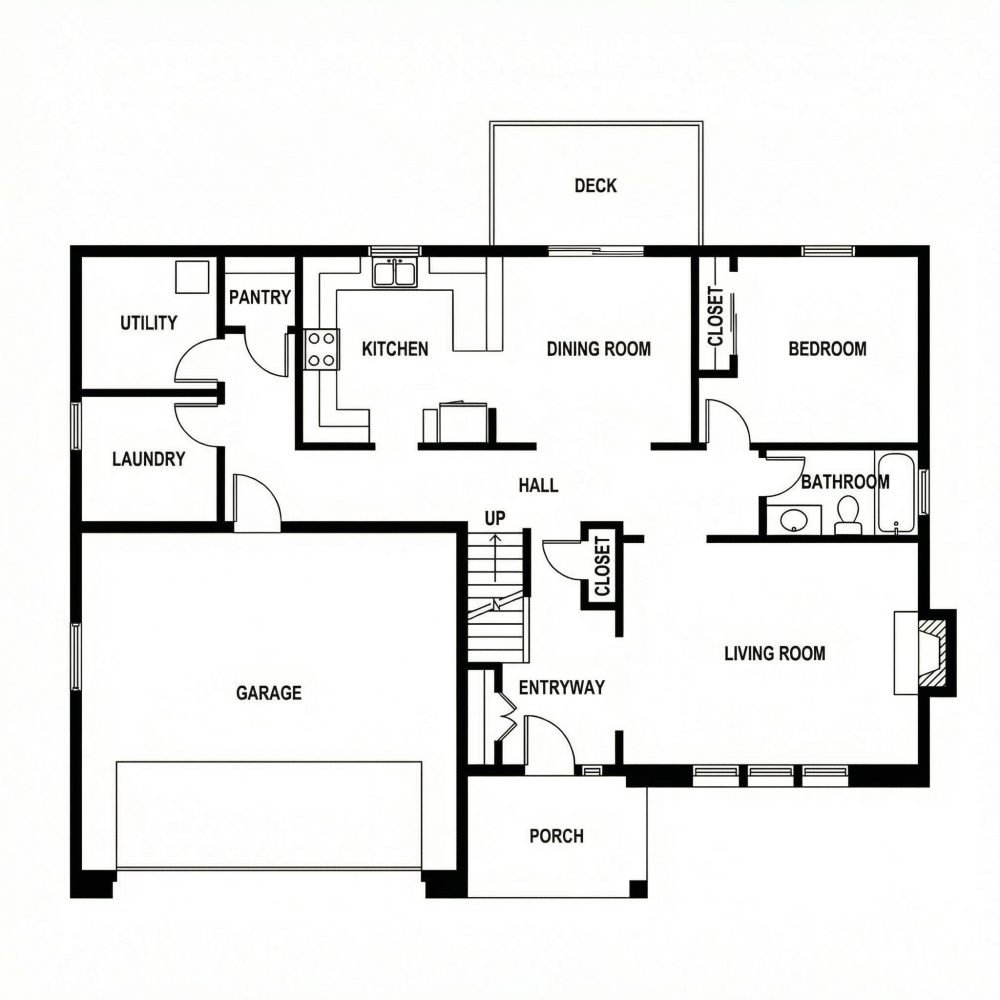

Main Floor
Scale: 62 ft × 32 ft footprint extents.
Gross area (by extents): 1,984 sq ft.
The plan enters through a covered porch into a tight entryway with stair access and a central hall. Public spaces sit to the right for easy lounging, while the service core (kitchen support and utilities) tucks neatly to the left beside the garage. A rear deck aligns with the dining zone for clean indoor-outdoor flow. The main-level bedroom sits quietly to the right, close to a full bath.
- Porch
- Entryway
- Hall
- Stairs (up)
- Living Room
- Dining Room
- Kitchen
- Pantry
- Utility
- Laundry
- Bedroom (main level)
- Bathroom (full)
- Closets (hall/bedroom storage)
- Deck
- Garage

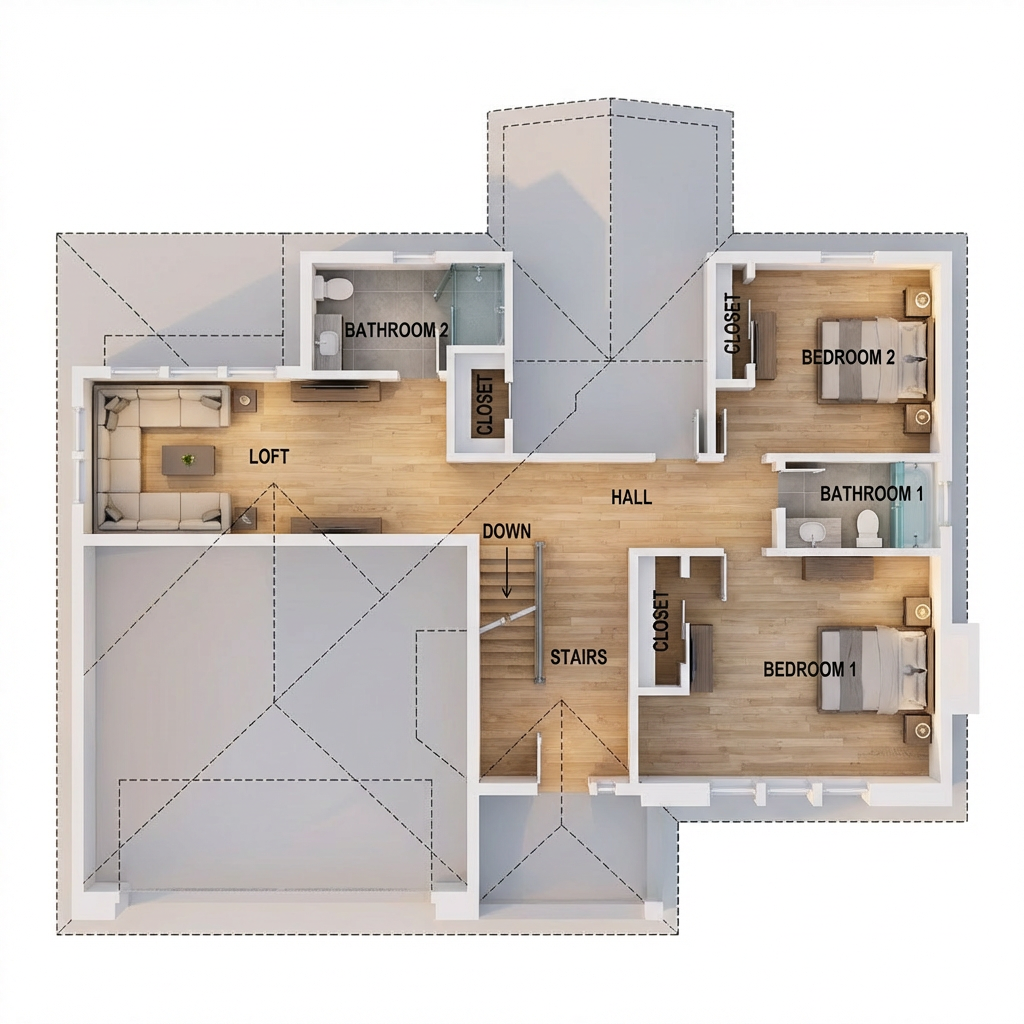

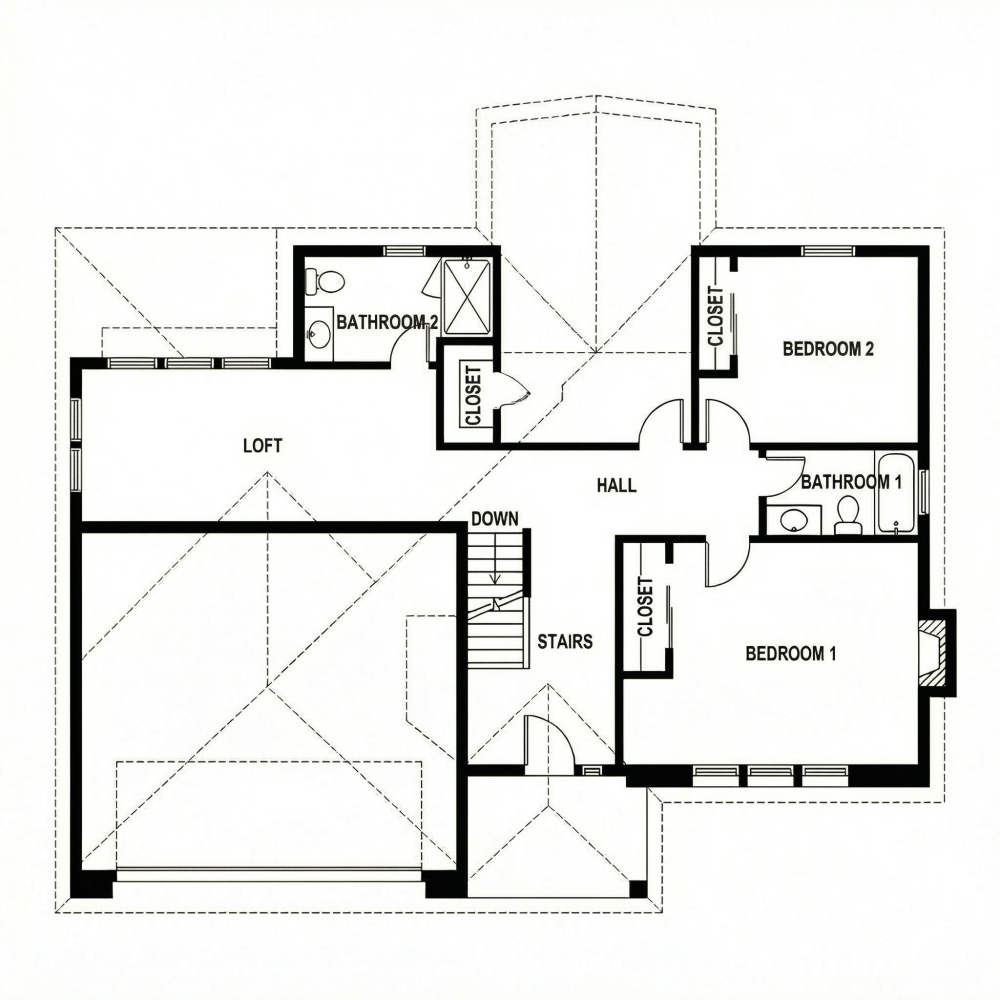

Upper Floor
Scale: 36 ft × 31 ft footprint extents.
Gross area (by extents): 1,116 sq ft.
Stairs land into a compact hall that splits the level into two bedrooms on the right and an open loft to the left. Two full baths serve the floor, keeping morning routines from turning into a competitive sport. Storage is handled with multiple closets placed where they behave: along the hall and beside bedrooms.
- Stairs (down)
- Hall
- Loft
- Bedroom 1
- Bedroom 2
- Bathroom 1 (full)
- Bathroom 2 (full)
- Closets (hall and bedroom storage)
